A practical guide to understanding why cross-region S3 access requires more than VPC Interface Endpoints with private DNS
Background
AWS informs us that to use an S3 bucket in another region (such as an EC2 instance in us-west-2 that requires an S3 bucket in us-east-1), we have several options [1]. The one I’m addressing is the one for “VPC interface endpoint (VPCE) with VPC peering”.
What AWS doesn’t tell us is that this won’t work without a small addition of connectivity to S3 in the region that doesn’t have the bucket (e.g., in my exampleus-west-2.) I’ll address this later on in step 6 of the implementation.
Scenario
An EC2 instance running in us-west-2 needs to access data in an S3 bucket located in us-east-1. Your first instinct might be to create an S3 Gateway Endpoint in your VPC, but here’s the catch — S3 Gateway Endpoints don’t provide cross-region access. (Neither do S3 VPC Interface Endpoints by default, but we will use these to solve the problem.)
This limitation exists because AWS VPC endpoints are designed to provide private connectivity to services within the same region.
The Solution Architecture
The solution involves creating a bridge between regions using VPC peering and leveraging DNS resolution to route traffic appropriately. Here’s what we’ll build:
Components:
- VPC A: Your existing VPC in
us-west-2, where your EC2 instance lives - VPC B: A new or existing VPC in
us-east-1where we’ll place our S3 Interface Endpoint - VPC Peering Connection: The bridge between our two VPCs
- Private Hosted Zone: Route53 DNS to resolve S3 Endpoints correctly
- S3 VPC Interface Endpoint: an Endpoint is just an Elastic Network Interface (ENI) in a target VPC that provides private, secure connectivity to S3 using the AWS backbone network (in our case, in
us-east-1)
Step-by-Step Implementation
Prerequisites
Before we start, ensure your VPCs don’t have overlapping CIDR blocks. AWS won’t allow you to peer VPCs with conflicting IP ranges. It is also assumed that your EC2 instance has an appropriate instance role that grants it permissions to interact with S3.
Step 1: Secure Your S3 Endpoint
Create a security group in VPC B (let’s call it VPC_B_S3_SG) that allows HTTPS traffic on port 443 from VPC A CIDR range. This security group will protect your S3 Interface Endpoint while allowing only the desired traffic flow. If you later need to allow the Interface Endpoint to receive traffic from other VPCs / CIDR blocks, you can always add these to the SG.
Step 2: Create the S3 VPC Interface Endpoint
In VPC B (us-east-1), create an S3 VPC Interface Endpoint with these specific settings [2]:
- Disable private DNS
- Attach the
VPC_B_S3_SGsecurity group you previously created
Step 3: Establish VPC Peering
Create a VPC peering connection between VPC A and VPC B. This creates a network bridge that allows traffic to flow between the regions [3].
Step 4: Configure DNS Resolution with PHZ

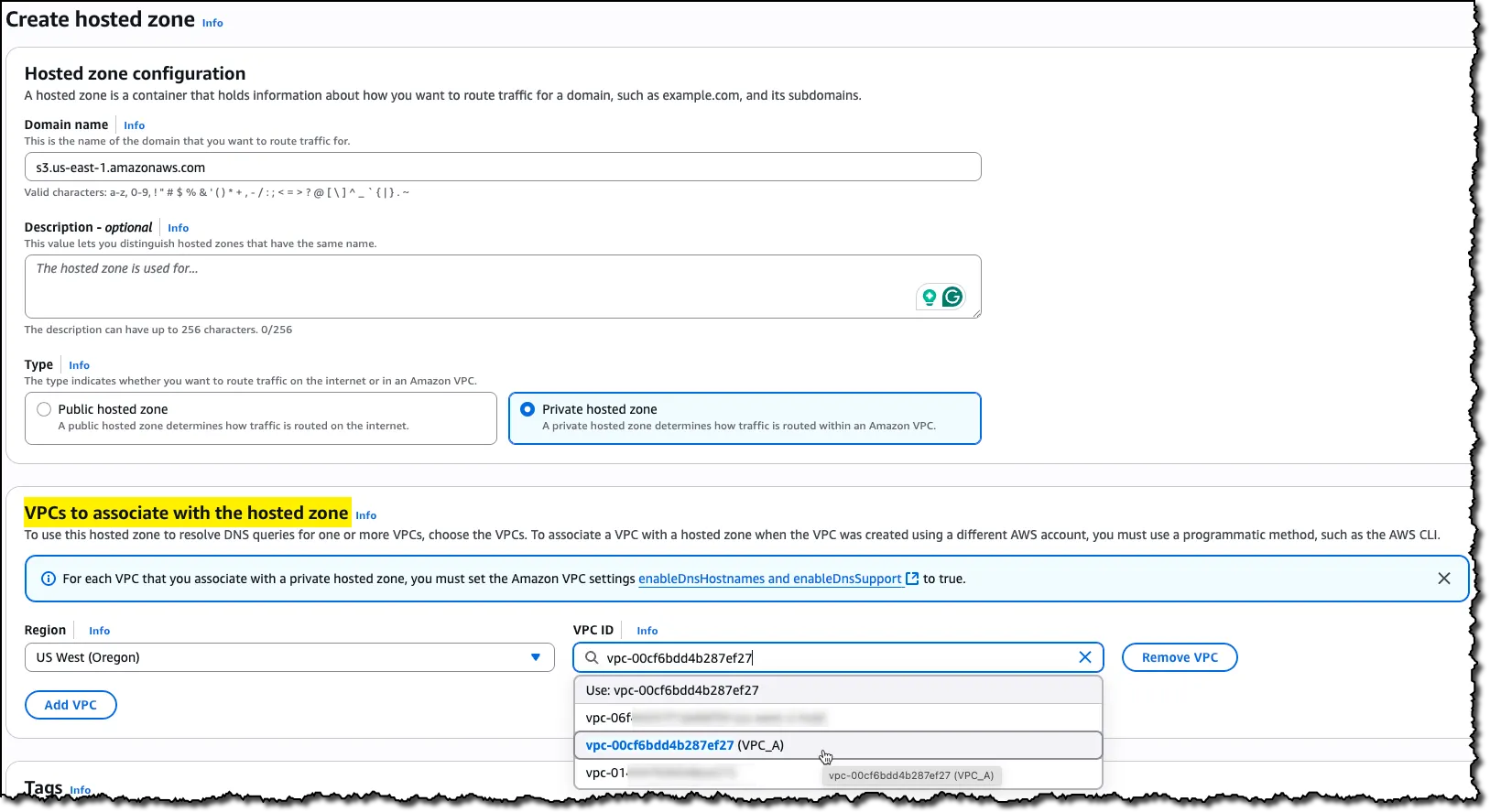

In Route53, create a Private Hosted Zone (PHZ) for the domain s3.us-east-1.amazonaws.com and associate it with VPC A in us-west-2. Repeat this association with other VPCs in the same or other regions for which you plan to peer with us-east-1 to allow the traffic to reach us-east-1’s S3 VPC Interface Endpoint.
Within this PHZ, create two Alias A records that point to your S3 VPC Interface Endpoint’s Regional DNS name*:

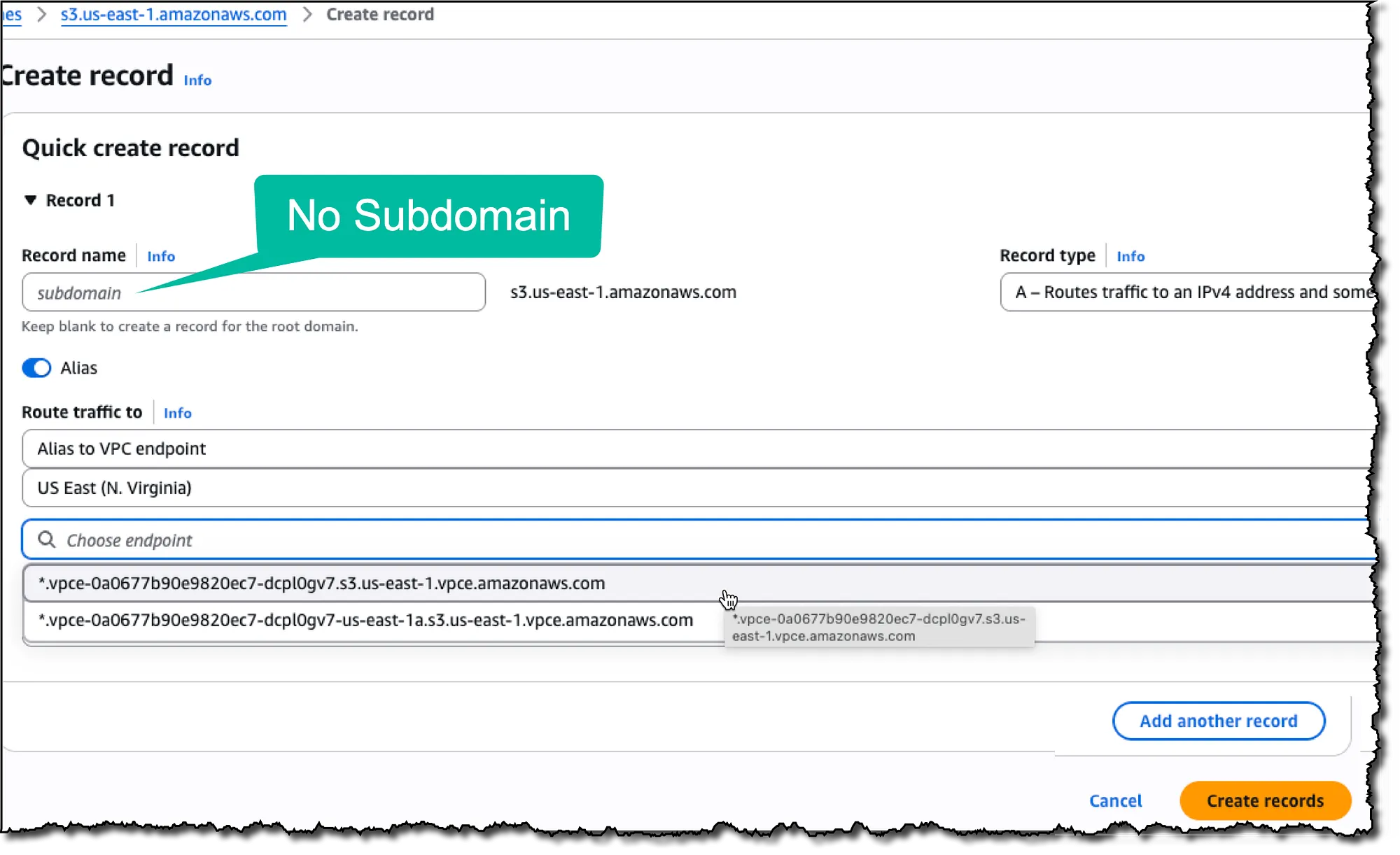

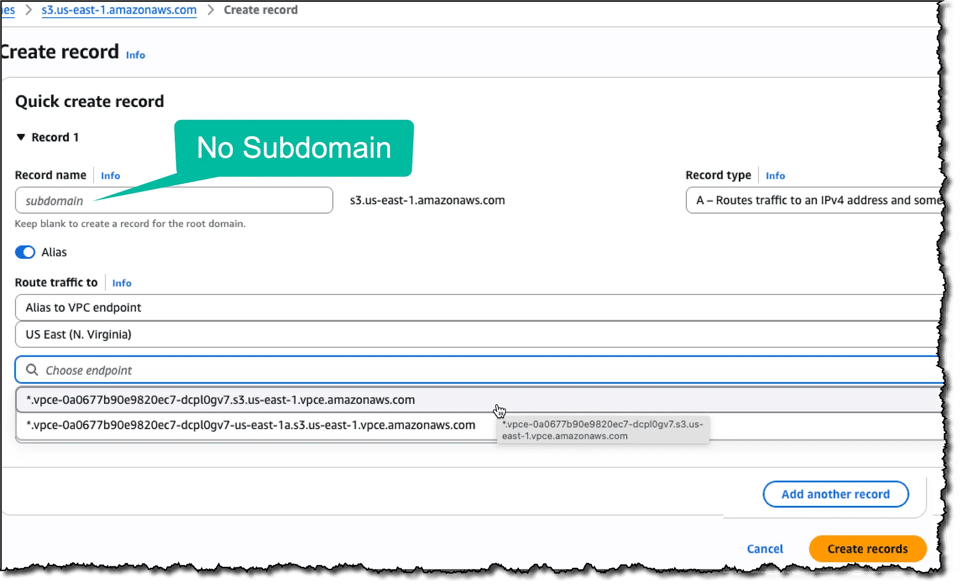

1. Root record: Leave the record name blank to create a record for
s3.us-east-1.amazonaws.com

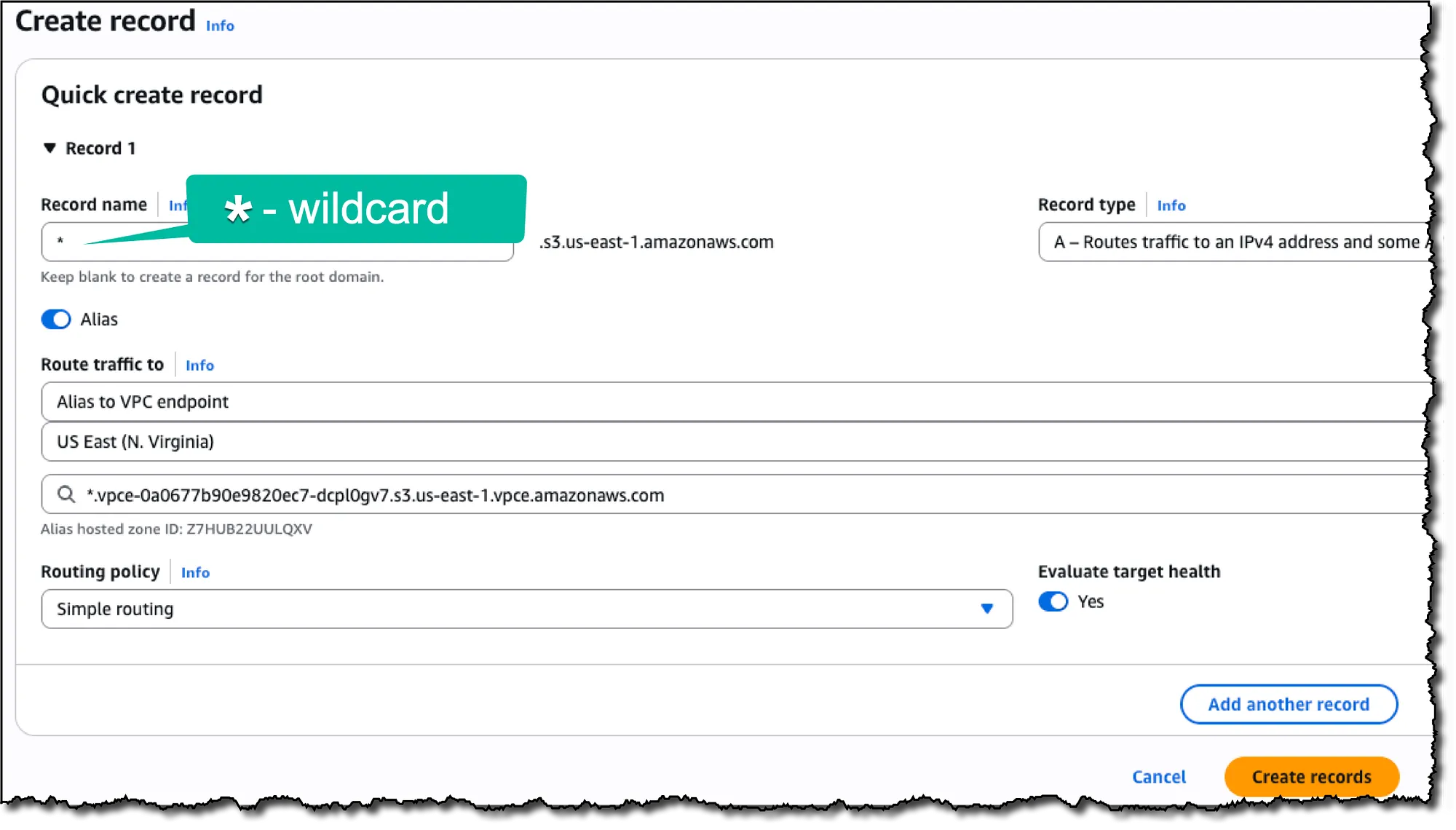

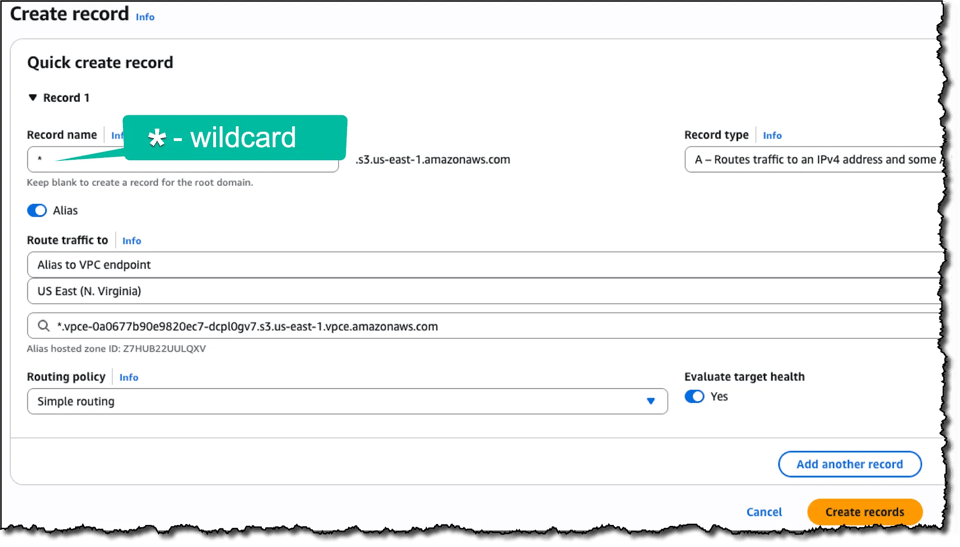

* as the record name to handle*.s3.us-east-1.amazonaws.com
* A Regional DNS name is the name without an availability zone specification.
It looks like:
*.vpce-0123456789abcdefg-dawd972fe.s3.us-east-1.vpce.amazonaws.comAnd not
us-east-1a (which is a Zonal DNS name).
A Zonal DNS name is useful in architectures that isolate workloads by Availability Zone. For instance, it can help reduce regional data transfer costs by ensuring traffic stays within the same AZ and Region as the Interface Endpoint’s ENI. However, this benefit applies only to same-Region, same-AZ access, which doesn’t apply in a cross-Region scenario.

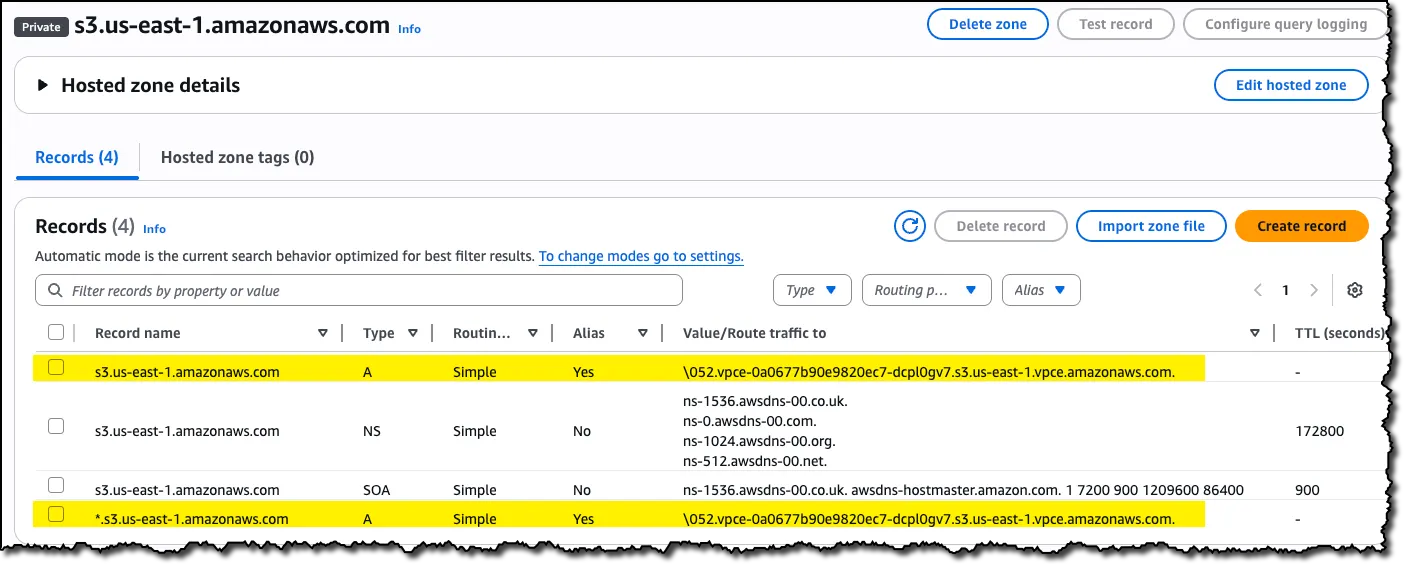

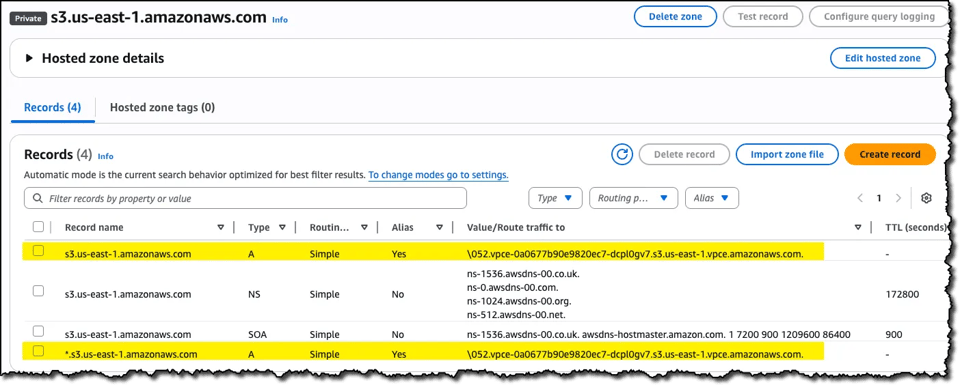

Resulting records:
Step 5: Configure Routing
Update your routing tables to ensure traffic can flow between the VPCs:
- VPC A: In the routing table of the subnet in which your EC2 instance is running, add a rule redirecting the traffic for VPC B’s CIDR block through the peering connection
- VPC B: In the route table of the subnet(s) you set your VPC Interface Endpoint in, add a rule redirecting the traffic for VPC A’s CIDR block through the same peering connection
Step 6: Enable Regional S3 Access for local DNS
Here’s a critical piece that’s often overlooked: your EC2 instance in VPC A needs to be able to reach its regional S3 endpoint (s3.us-west-2.amazonaws.com) to determine which region a bucket belongs to. Without this, you will need to add a “--region <REGION NAME>” when accessing buckets residing in the us-east-1 region.
You can achieve this by using one of the following methods:
- An Internet Gateway or NAT Gateway for internet access
- An S3 Gateway Endpoint in VPC A (recommended for cost)
- An S3 VPC Interface Endpoint in VPC A with private DNS enabled
The recommended approach is to have an S3 Gateway Endpoint in each VPC/Region where you need to access S3, as it is free of charge — both in terms of the hourly rate and traffic processing — unlike the alternatives.
AWS SDK Configuration for Cross-Region S3 Access
When accessing S3 buckets across regions via VPC peering, configure your AWS SDK to handle cross-region requests properly:
Option 1: Specify Regional Endpoints
Define the specific regional endpoint URL (e.g., s3.us-east-1.amazonaws.com) for your target bucket region.
Example for JavaScript SDK V2:
Option 2: Enable Cross-Region Access
- Java SDK v2: Use
crossRegionAccessEnabled(true)in your S3 client builder [7] - JavaScript SDK v3: Set
followRegionRedirects: truein your S3 client configuration [8]

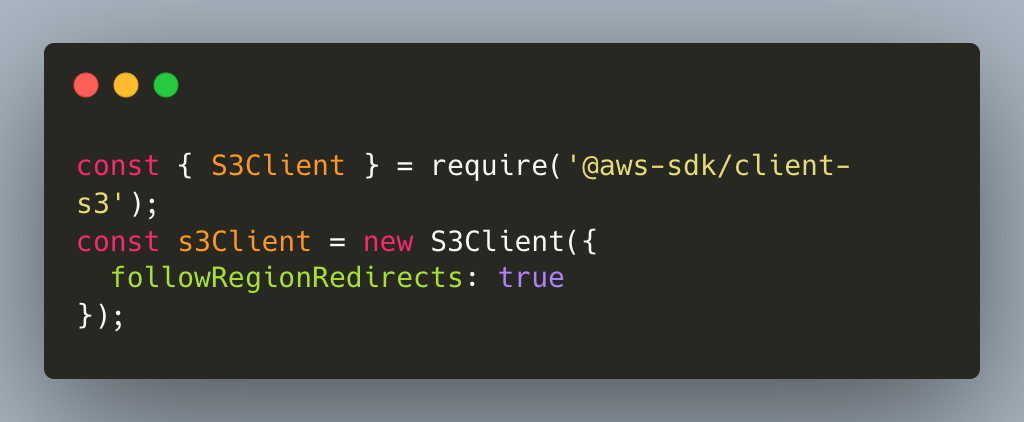

JavaScript SDK v3 Example:
Note: Using Java SDK V2, the first request to a bucket in a different region may have increased latency, but subsequent requests benefit from cached region information.
This is not true for the JavaScript SDK V3, which does not cache region information. Each cross-region request may incur redirect latency. For better performance with known cross-region access patterns, consider specifying the exact regional endpoint URL instead.
AWS CLI knows how to handle such redirects automatically and doesn’t need the region or endpoint URL for a bucket, assuming you followed step 6 above.
How It All Works Together

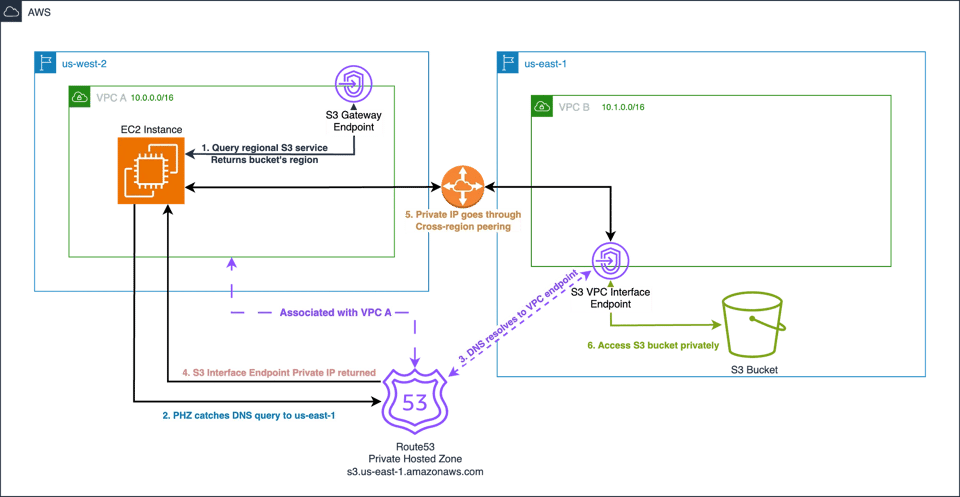

When your EC2 instance tries to access a bucket in us-east-1, here’s the flow:
- The instance queries its regional S3 service to determine the bucket’s location
- Once it knows the bucket is in
us-east-1, it queries a DNS for its IPs inus-east-1 - Your Private Hosted Zone intercepts this DNS query and resolves it to the private IP of your S3 Interface Endpoint in VPC B
- The private IP of your S3 Interface Endpoint is returned to the EC2
- The rule you added to the routing table of EC2’s subnet in VPC A will redirect the traffic of the private IPs through the VPC peering connection to VPC B, and from there to the S3 VPC Interface Endpoint
- The endpoint provides secure, private access to S3 buckets in
us-east-1
Any response from S3 (such as if you requested an object) will travel back through the VPC Peering connection to the EC2 instance in VPC A.
Why This Approach Works
This solution elegantly works around AWS’s regional limitations by:
- Leveraging VPC peering to create cross-region connectivity
- Using private PHZ DNS resolution to get the private IP of the correct regional S3 endpoint
- Maintaining security through VPC endpoints instead of internet routing
- No changes to your client apps — your applications don’t need any changes (you don’t need to add a region or an endpoint URL) and can simply use the bucket’s name
Things to Keep in Mind
Cost considerations: VPC peering incurs data transfer costs [4], while Interface Endpoints incur hourly charges plus data processing fees [5]. Factor these into your architecture decisions.
Latency impact: Cross-region traffic will have higher latency than same-region access. If performance is critical, consider bucket replication strategies instead [6].
Complexity trade-off: This setup adds architectural complexity. Evaluate whether the benefits (cost and intra-VPC security) justify the additional operational overhead.
Wrapping Up
Cross-region S3 access through VPC peering and a PHZ is the recommended approach, and it is explained in various places (both within AWS Blogs and outside of them). The part that is being overlooked repeatedly is that without internet connectivity or an S3 Endpoint (preferably a Gateway Endpoint) in the region where the bucket isn’t located, it won’t work unless you specifically include the bucket’s region on every call. Using the solution in step 6 above allows you to access the bucket without needing to specify its region.
Have you implemented cross-region VPC connectivity in your AWS environment? I’d love to hear about your experiences and any variations on this approach you’ve discovered.
